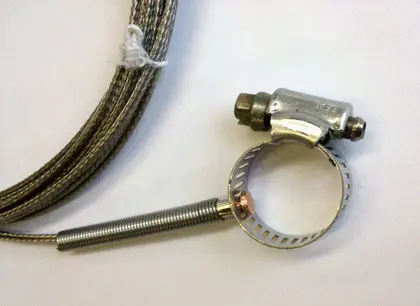

PC Style Pipe Clamp Thermocouple

Click to enlarge
 (14.77/ea)
Total Price: $14.77
Quantity:

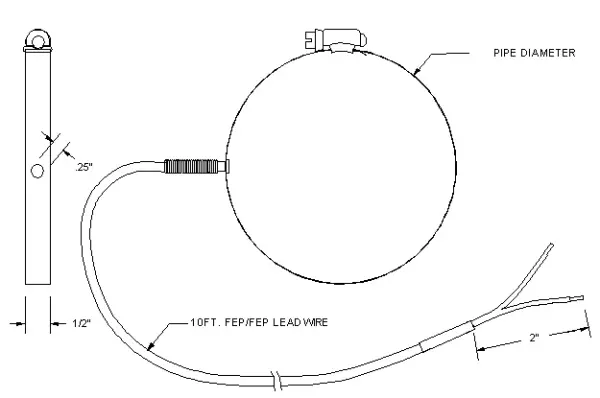

Stainless Steel Pipe Clamp thermocouples are designed to monitor pipe temperatures without drilling or tapping, also use to measure tubular heater sheath temperature.  A variety Clamp ranges from 11/16” up to 7” are available along with wire insulations and termination options to choose from.  Contact the sales department for custom sizes.

Specifications

  • Shim Material: Brass
  • Leadwire Insulation: Fiberglass SS Overbraid
  • Calibration: Other consult factory
  • Model Placeholder: Placeholder Value
  • 00G Placeholder: Placeholder Value
  • 0 Placeholder: Placeholder Value
  • Termination: Split leads with spade lugs
  • Leadwire Length "L" (specify whole feet: 01 to 99)
  • Wire Gauge: 30 AWG (Solid conductors)
